Review Maxwell equations to electric field wave equation

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9991999979
    \(\vec{ \nabla} \times \vec{E} = -\mu_0\frac{\partial \vec{H}}{\partial t}\)
 no validation is available for declarations
1.3
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 1314864131
    \(\vec{ \nabla} \times \vec{H} = \epsilon_0 \frac{\partial }{\partial t}\vec{E}\)
 no validation is available for declarations
1.6
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9999999981
    \(\vec{ \nabla} \cdot \vec{E} = \rho/\epsilon_0\)
 no validation is available for declarations
3
  • 0000111680: partially differentiate with respect to
  • number of inputs: 1; feeds: 1; outputs: 1
  • Partially differentiate Eq.~\ref{eq:#2} with respect to $#1$; yields Eq.~\ref{eq:#3}.
  1. 1314864131
    \(\vec{ \nabla} \times \vec{H} = \epsilon_0 \frac{\partial }{\partial t}\vec{E}\)
  1. 0005626421
    \(t\)
  1. 1314464131
    \(\vec{ \nabla} \times \frac{\partial \vec{H}}{\partial t} = \epsilon_0 \frac{\partial^2 \vec{E}}{\partial t^2}\)
 Not evaluated due to missing term in SymPy
4
  • 0000111776: take curl of both sides
  • number of inputs: 1; feeds: 0; outputs: 1
  • Apply curl to both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 9991999979
    \(\vec{ \nabla} \times \vec{E} = -\mu_0\frac{\partial \vec{H}}{\partial t}\)
  1. 9291999979
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = -\mu_0\vec{ \nabla} \times \frac{\partial \vec{H}}{\partial t}\)
 recognized infrule but not yet supported
5
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1314464131
    \(\vec{ \nabla} \times \frac{\partial \vec{H}}{\partial t} = \epsilon_0 \frac{\partial^2 \vec{E}}{\partial t^2}\)
  2. 9291999979
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = -\mu_0\vec{ \nabla} \times \frac{\partial \vec{H}}{\partial t}\)
  1. 3947269979
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = -\mu_0 \epsilon_0 \frac{\partial^2 \vec{E}}{\partial t^2}\)
 Not evaluated due to missing term in SymPy
7
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 9919999981
    \(\rho = 0\)
 no validation is available for declarations
8
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9919999981
    \(\rho = 0\)
  2. 9999999981
    \(\vec{ \nabla} \cdot \vec{E} = \rho/\epsilon_0\)
  1. 7466829492
    \(\vec{ \nabla} \cdot \vec{E} = 0\)
 LHS diff is nabla*pdg0004326 - dot(pdg0006238, nabla) RHS diff is 0
9
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 7575859295
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 no validation is available for declarations
10
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 7466829492
    \(\vec{ \nabla} \cdot \vec{E} = 0\)
  2. 7575859295
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  1. 1636453295
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = - \nabla^2 \vec{E}\)
 LHS diff is -cross(nabla, cross(nabla, pdg0004326)) + cross(pdg0006238, cross(nabla, nabla)) RHS diff is nabla**2*pdg0004326 + nabla(-nabla**2*pdg0006238)
11
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 3947269979
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = -\mu_0 \epsilon_0 \frac{\partial^2 \vec{E}}{\partial t^2}\)
  2. 1636453295
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = - \nabla^2 \vec{E}\)
  1. 8494839423
    \(\nabla^2 \vec{E} = \mu_0 \epsilon_0 \frac{\partial^2 \vec{E}}{\partial t^2}\)
 Not evaluated due to missing term in SymPy
12
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 8494839423
    \(\nabla^2 \vec{E} = \mu_0 \epsilon_0 \frac{\partial^2 \vec{E}}{\partial t^2}\)
no validation is available for declarations

Symbols used in Maxwell equations to electric field wave equation

Steps and expressions for Maxwell equations to electric field wave equation

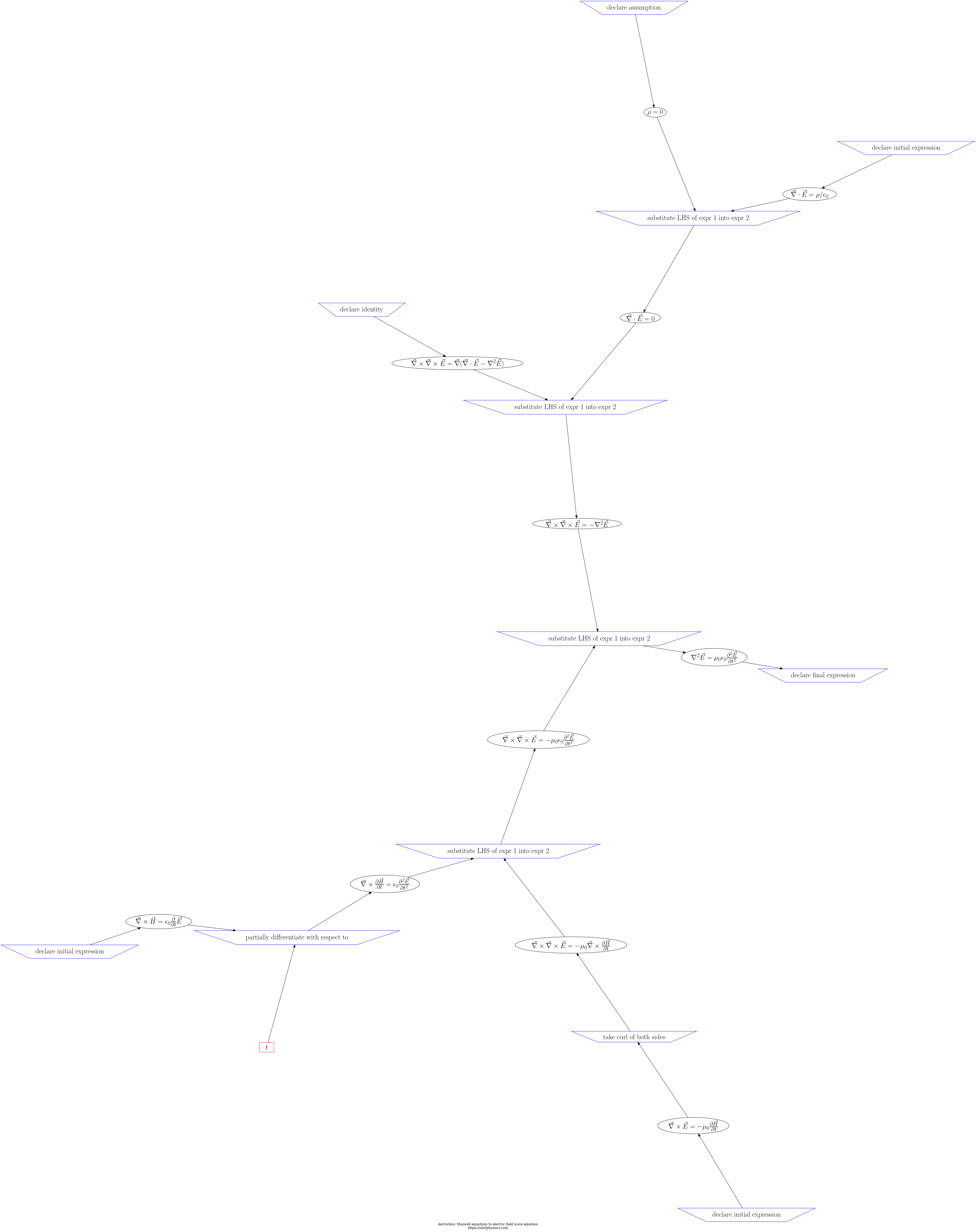

d3js visualization of steps and expressions in Maxwell equations to electric field wave equation
