Return to navigation page or list derivations

Review quadratic equation derivation

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9285928292
    \(ax^2 + bx + c = 0\)
 no validation is available for declarations
3
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 9285928292
    \(ax^2 + bx + c = 0\)
  1. 0002424922
    \(a\)
  1. 5958392859
    \(x^2 + (b/a)x+(c/a) = 0\)
 Algebraic error: LHS diff is pdg0001464*(pdg0001939 - pdg0009139)/pdg0009139, RHS diff is 0
4
  • 0000111282: subtract X from both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5958392859
    \(x^2 + (b/a)x+(c/a) = 0\)
  1. 0006644853
    \(c/a\)
  1. 5938459282
    \(x^2 + (b/a)x = -c/a\)
 LHS diff is pdg0001464*(-pdg0001939 + pdg0009139)/pdg0009139 RHS diff is 0
5
  • 0000111530: add X to both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5938459282
    \(x^2 + (b/a)x = -c/a\)
  1. 0004307451
    \((b/(2 a))^2\)
  1. 5928292841
    \(x^2 + (b/a)x + (b/(2 a))^2 = -c/a + (b/(2 a))^2\)
 valid
6
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 8582954722
    \(x^2 + 2 x h + h^2 = (x + h)^2\)
  1. 0000999900
    \(b/(2 a)\)
  2. 0004858592
    \(h\)
  1. 5928285821
    \(x^2 + 2 x (b/(2 a)) + (b/(2 a))^2 = (x + (b/(2 a)))^2\)
 LHS diff is -pdg0001464*pdg0001939/pdg0009139 + 2*pdg0001464*pdg0003410 - pdg0001939**2/(4*pdg0009139**2) + pdg0003410**2 RHS diff is (pdg0001464 + pdg0003410)**2 - (2*pdg0001464*pdg0009139 + pdg0001939)**2/(4*pdg0009139**2)
7
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 5928285821
    \(x^2 + 2 x (b/(2 a)) + (b/(2 a))^2 = (x + (b/(2 a)))^2\)
  1. 5959282914
    \(x^2 + x(b/a) + (b/(2 a))^2 = (x+(b/(2 a)))^2\)
 valid
7.5
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 8582954722
    \(x^2 + 2 x h + h^2 = (x + h)^2\)
 no validation is available for declarations
8
  • 0000111355: LHS of expr 1 equals LHS of expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • LHS of Eq.~\ref{eq:#1} is equal to LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5959282914
    \(x^2 + x(b/a) + (b/(2 a))^2 = (x+(b/(2 a)))^2\)
  2. 5928292841
    \(x^2 + (b/a)x + (b/(2 a))^2 = -c/a + (b/(2 a))^2\)
  1. 9385938295
    \((x+(b/(2 a)))^2 = -(c/a) + (b/(2 a))^2\)
 valid
9
  • 0000111524: square root both sides
  • number of inputs: 1; feeds: 0; outputs: 2
  • Take the square root of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2} and Eq.~\ref{eq:#3}.
  1. 9385938295
    \((x+(b/(2 a)))^2 = -(c/a) + (b/(2 a))^2\)
  1. 9582958294
    \(x+(b/(2 a)) = \sqrt{(b/(2 a))^2 - (c/a)}\)
  2. 5982958249
    \(x+(b/(2 a)) = -\sqrt{(b/(2 a))^2 - (c/a)}\)
 recognized infrule but not yet supported
10
  • 0000111282: subtract X from both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 5982958249
    \(x+(b/(2 a)) = -\sqrt{(b/(2 a))^2 - (c/a)}\)
  1. 0002838490
    \(b/(2 a)\)
  1. 9582958293
    \(x = \sqrt{(b/(2 a))^2 - (c/a)}-(b/(2 a))\)
 LHS diff is 0 RHS diff is -sqrt((pdg0001939**2 - 4*pdg0004231*pdg0009139)/pdg0009139**2)
10.5
  • 0000111282: subtract X from both sides
  • number of inputs: 1; feeds: 1; outputs: 1
  • Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9582958294
    \(x+(b/(2 a)) = \sqrt{(b/(2 a))^2 - (c/a)}\)
  1. 0002449291
    \(b/(2 a)\)
  1. 5982958248
    \(x = -\sqrt{(b/(2 a))^2 - (c/a)}-(b/(2 a))\)
 LHS diff is 0 RHS diff is sqrt((pdg0001939**2 - 4*pdg0004231*pdg0009139)/pdg0009139**2)
11
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 5982958248
    \(x = -\sqrt{(b/(2 a))^2 - (c/a)}-(b/(2 a))\)
  1. 9999999968
    \(x = \frac{-b-\sqrt{b^2-4ac}}{2 a}\)
 LHS diff is 0 RHS diff is (-pdg0009139*sqrt((pdg0001939**2 - 4*pdg0004231*pdg0009139)/pdg0009139**2) + sqrt(pdg0001939**2 - 4*pdg0004231*pdg0009139))/(2*pdg0009139)
11.5
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 9582958293
    \(x = \sqrt{(b/(2 a))^2 - (c/a)}-(b/(2 a))\)
  1. 9999999969
    \(x = \frac{-b+\sqrt{b^2-4ac}}{2 a}\)
 LHS diff is 0 RHS diff is (pdg0009139*sqrt((pdg0001939**2 - 4*pdg0004231*pdg0009139)/pdg0009139**2) - sqrt(pdg0001939**2 - 4*pdg0004231*pdg0009139))/(2*pdg0009139)
14
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 9999999968
    \(x = \frac{-b-\sqrt{b^2-4ac}}{2 a}\)
no validation is available for declarations
15
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 9999999969
    \(x = \frac{-b+\sqrt{b^2-4ac}}{2 a}\)
no validation is available for declarations

Symbols used in quadratic equation derivation

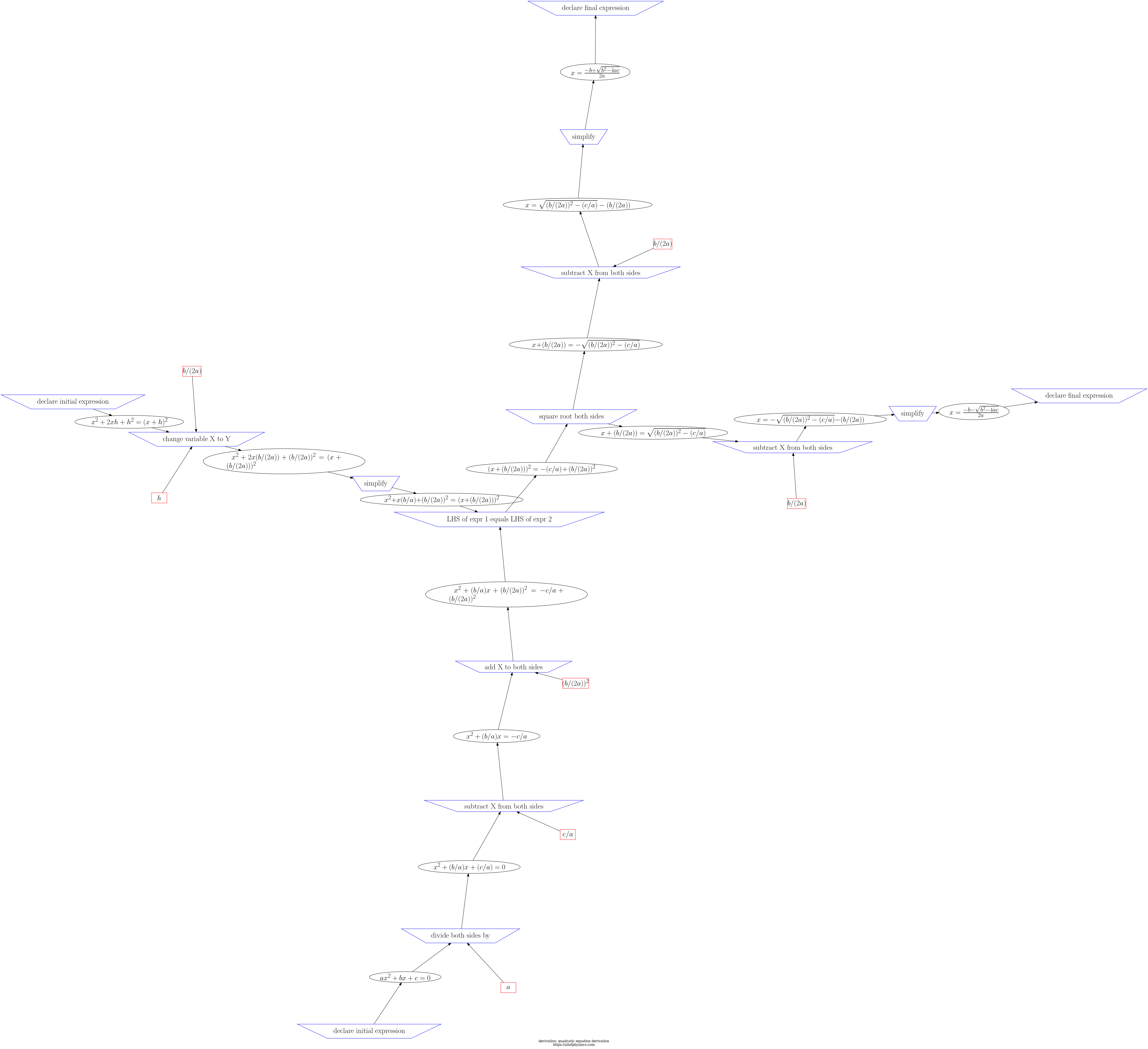

Steps and expressions for quadratic equation derivation

d3js visualization of steps and expressions in quadratic equation derivation


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

Generate Tex file or PDF file
   xor

Delete Derivation and all associated steps

This does not remove expressions, symbols, and operations.
