Review quantum basics Hermitian operators have realvalued observables

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 9999999975
    \(\langle \psi| \hat{A} |\psi \rangle = \langle a \rangle\)
 no validation is available for declarations
2
  • 0000111696: conjugate transpose both sides
  • number of inputs: 1; feeds: 0; outputs: 1
  • Conjugate transpose of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 9999999975
    \(\langle \psi| \hat{A} |\psi \rangle = \langle a \rangle\)
  1. 2394935835
    \(\left(\langle\psi| \hat{A} |\psi \rangle \right)^+ = \left(\langle a \rangle\right)^+\)
 Not evaluated due to missing term in SymPy
3
  • 0000111890: distribute conjugate transpose to factors
  • number of inputs: 1; feeds: 0; outputs: 1
  • Distribute conjugate transpose to factors in Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 2394935835
    \(\left(\langle\psi| \hat{A} |\psi \rangle \right)^+ = \left(\langle a \rangle\right)^+\)
  1. 1010393913
    \(\langle \psi| \hat{A}^+ |\psi \rangle = \langle a \rangle^*\)
 Not evaluated due to missing term in SymPy
4
  • 0000111104: declare assumption
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an assumption.
  1. 9294858532
    \(\hat{A}^+ = \hat{A}\)
 no validation is available for declarations
5
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1010393913
    \(\langle \psi| \hat{A}^+ |\psi \rangle = \langle a \rangle^*\)
  2. 9294858532
    \(\hat{A}^+ = \hat{A}\)
  1. 4948934890
    \(\langle \psi| \hat{A} |\psi \rangle = \langle a \rangle^*\)
 Not evaluated due to missing term in SymPy
6
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9999999975
    \(\langle \psi| \hat{A} |\psi \rangle = \langle a \rangle\)
  2. 4948934890
    \(\langle \psi| \hat{A} |\psi \rangle = \langle a \rangle^*\)
  1. 2848934890
    \(\langle a \rangle^* = \langle a \rangle\)
 Not evaluated due to missing term in SymPy
7
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 2848934890
    \(\langle a \rangle^* = \langle a \rangle\)
no validation is available for declarations

Symbols used in quantum basics Hermitian operators have realvalued observables

Steps and expressions for quantum basics Hermitian operators have realvalued observables

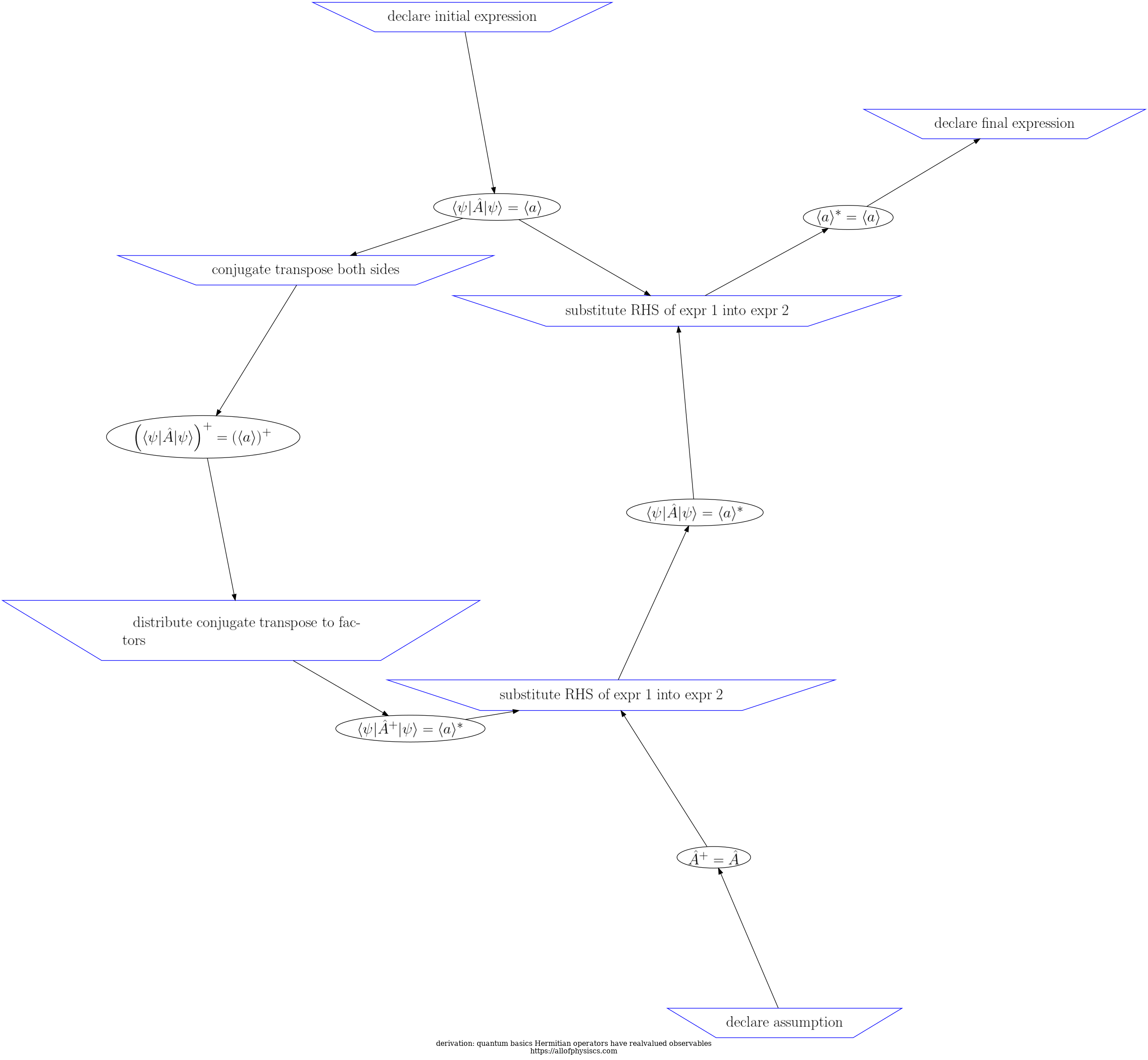

d3js visualization of steps and expressions in quantum basics Hermitian operators have realvalued observables
