Review Compton's equation for scattering

abstract:
reference:

step	inference rule	input	feed	output	step validity (as per SymPy)
1	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			1638282134 $\vec{p}_{\rm before} = \vec{p}_{\rm after}$	no validation is available for declarations
2	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			8257621077 $\vec{p}_{\rm before} = \vec{p}_{1}$	no validation is available for declarations
3	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			8311458118 $\vec{p}_{\rm after} = \vec{p}_{2}+\vec{p}_{electron}$	no validation is available for declarations
4	0000111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	1638282134 $\vec{p}_{\rm before} = \vec{p}_{\rm after}$ 8257621077 $\vec{p}_{\rm before} = \vec{p}_{1}$		3951205425 $\vec{p}_{\rm after} = \vec{p}_{1}$	valid
5	0000111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	8311458118 $\vec{p}_{\rm after} = \vec{p}_{2}+\vec{p}_{electron}$ 3951205425 $\vec{p}_{\rm after} = \vec{p}_{1}$		8139187332 $\vec{p}_{1} = \vec{p}_{2}+\vec{p}_{electron}$	LHS diff is pdg0002097 + pdg0004299 - pdg0006029 RHS diff is -pdg0002097 - pdg0004299 + pdg0006029
6	0000111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	8139187332 $\vec{p}_{1} = \vec{p}_{2}+\vec{p}_{electron}$	0002338514 $\vec{p}_{2}$	5530148480 $\vec{p}_{1}-\vec{p}_{2} = \vec{p}_{electron}$	valid
7	0000111268: swap LHS with RHS number of inputs: 1; feeds: 0; outputs: 1 Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.	5530148480 $\vec{p}_{1}-\vec{p}_{2} = \vec{p}_{electron}$		7917051060 $\vec{p}_{electron} = \vec{p}_{1}-\vec{p}_{2}$	valid
8	0000111253: multiply expr 1 by expr 2 number of inputs: 2; feeds: 0; outputs: 1 Multiply Eq.~\ref{eq:#1} by Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	7917051060 $\vec{p}_{electron} = \vec{p}_{1}-\vec{p}_{2}$ 7917051060 $\vec{p}_{electron} = \vec{p}_{1}-\vec{p}_{2}$		6742123016 $\vec{p}_{electron}\cdot\vec{p}_{electron} = ( \vec{p}_{1}\cdot\vec{p}_{1})+( \vec{p}_{2}\cdot\vec{p}_{2})-2( \vec{p}_{1}\cdot\vec{p}_{2})$	Not evaluated due to missing term in SymPy

Symbols used in Compton's equation for scattering

0000006029: $ \vec{p}_1 $
0000002097: $ \vec{p}_2 $
0000005493: $ \vec{p}_{\rm after} $
0000001302: $ \vec{p}_{\rm before} $
0000004299: $ \vec{p}_{\rm electron} $

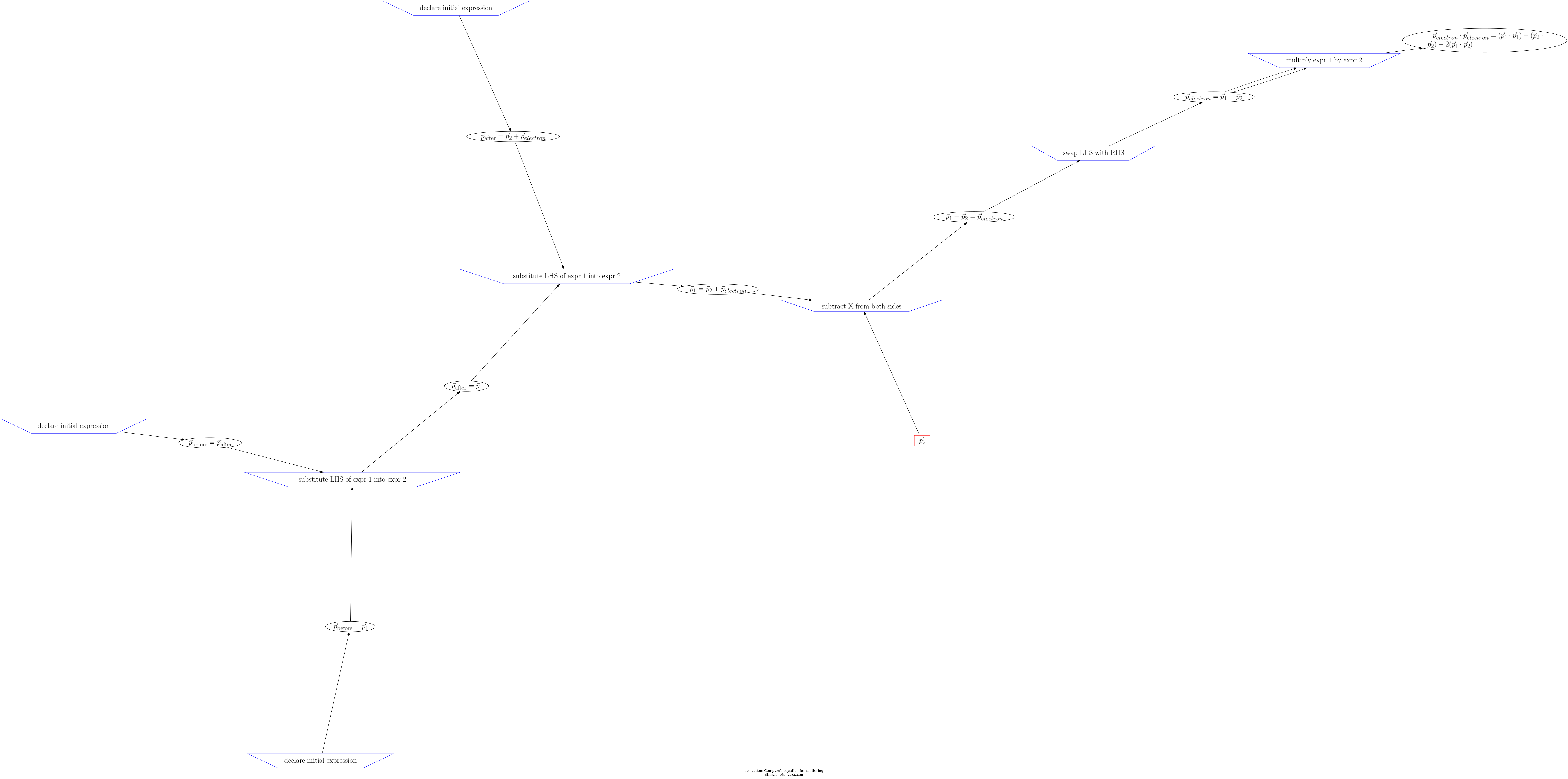

d3js visualization of steps and expressions in Compton's equation for scattering

Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.
