review derivation: Euler equation: trig square root

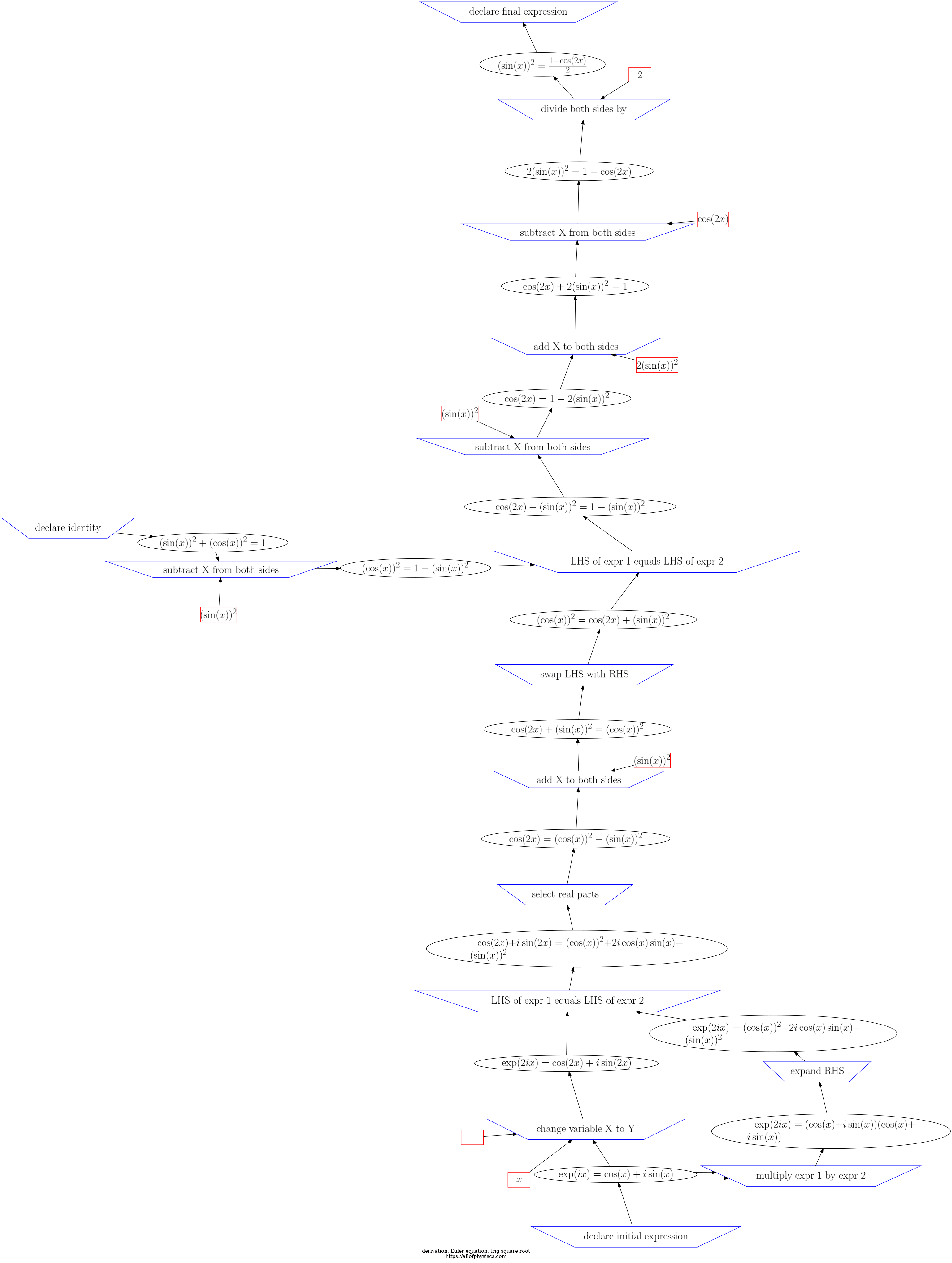

This page contains three views of the steps in the derivation: d3js, graphviz PNG, and a table.


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Notes for this derivation:

Options
Alternate views of this derivation:
Edit this content:

To edit a step, click on the number in the "Index" column in the table below

Clicking on the step index will take you to the page where you can edit that step.

Index Inference Rule Input latex Feeds latex Output latex step validity dimension check unit check notes
16 declare final expr
  1. 9988949211; locally 1231131:
    \((\sin(x))^2 = \frac{1 - \cos(2 x)}{2}\)
    \(\sin^{2}{\left(pdg_{1464} \right)} = \frac{1}{2} - \frac{\cos{\left(2 pdg_{1464} \right)}}{2}\)
no validation is available for declarations 9988949211:
9988949211:
8 declare identity
  1. 5832984291; locally 9385720:
    \((\sin(x))^2 + (\cos(x))^2 = 1\)
    \(\sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)} = 1\)
no validation is available for declarations 5832984291: error for dim with 5832984291
 5832984291: N/A
15 divide both sides by
  1. 9889984281; locally 7472666:
    \(2 (\sin(x))^2 = 1 - \cos(2 x)\)
    \(2 \sin^{2}{\left(pdg_{1464} \right)} = 1 - \cos{\left(2 pdg_{1464} \right)}\)
  1. 0003838111:
    \(2\)
    \(2\)
  1. 9988949211; locally 1231131:
    \((\sin(x))^2 = \frac{1 - \cos(2 x)}{2}\)
    \(\sin^{2}{\left(pdg_{1464} \right)} = \frac{1}{2} - \frac{\cos{\left(2 pdg_{1464} \right)}}{2}\)
valid 9889984281:
9988949211:
9889984281:
9988949211:
10 swap LHS with RHS
  1. 9482928243; locally 4890284:
    \(\cos(2 x) + (\sin(x))^2 = (\cos(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)} = \cos^{2}{\left(pdg_{1464} \right)}\)
  1. 9482438243; locally 2936550:
    \((\cos(x))^2 = \cos(2 x) + (\sin(x))^2\)
    \(\cos^{2}{\left(pdg_{1464} \right)} = \sin^{2}{\left(pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)}\)
valid 9482928243:
9482438243:
9482928243:
9482438243:
5 expand RHS
  1. 4638429483; locally 3333333:
    \(\exp(2 i x) = (\cos(x)+ i \sin(x))(\cos(x)+ i \sin(x))\)
    \(e^{2 pdg_{1464} pdg_{4621}} = \left(pdg_{4621} \sin{\left(pdg_{1464} \right)} + \cos{\left(pdg_{1464} \right)}\right)^{2}\)
  1. 4598294821; locally 4444444:
    \(\exp(2 i x) = (\cos(x))^2+2i\cos(x)\sin(x)-(\sin(x))^2\)
    \(e^{2 pdg_{1464} pdg_{4621}} = 2 pdg_{4621} \sin{\left(pdg_{1464} \right)} \cos{\left(pdg_{1464} \right)} - \sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)}\)
LHS diff is 0 RHS diff is (pdg4621**2 + 1)*sin(pdg1464)**2 4638429483:
4598294821:
4638429483:
4598294821:
2 change variable X to Y
  1. 4938429483; locally 8888888:
    \(\exp(i x) = \cos(x)+i \sin(x)\)
    \(e^{pdg_{1464} pdg_{4621}} = pdg_{4621} \sin{\left(pdg_{1464} \right)} + \cos{\left(pdg_{1464} \right)}\)
  1. 0004089571:
    \(2 x\)
    \(2 pdg_{1464}\)
  2. 0004582412:
    \(x\)
    \(pdg_{1464}\)
  1. 4838429483; locally 9999999:
    \(\exp(2 i x) = \cos(2 x)+i \sin(2 x)\)
    \(e^{2 pdg_{1464} pdg_{4621}} = pdg_{4621} \sin{\left(2 pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)}\)
LHS diff is (1 - exp(pdg1464*pdg4621))*exp(pdg1464*pdg4621) RHS diff is pdg4621*sin(pdg1464) - pdg4621*sin(2*pdg1464) + cos(pdg1464) - cos(2*pdg1464) 4938429483:
4838429483:
4938429483:
4838429483:
12 subtract X from both sides
  1. 4827492911; locally 9481000:
    \(\cos(2 x)+(\sin(x))^2 = 1 - (\sin(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)} = 1 - \sin^{2}{\left(pdg_{1464} \right)}\)
  1. 0006466214:
    \((\sin(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)}\)
  1. 1248277773; locally 7472641:
    \(\cos(2 x) = 1 - 2 (\sin(x))^2\)
    \(\cos{\left(2 pdg_{1464} \right)} = 1 - 2 \sin^{2}{\left(pdg_{1464} \right)}\)
valid 4827492911:
1248277773:
4827492911:
1248277773:
14 subtract X from both sides
  1. 7572664728; locally 1029911:
    \(\cos(2 x) + 2 (\sin(x))^2 = 1\)
    \(2 \sin^{2}{\left(pdg_{4037} \right)} + \cos{\left(2 pdg_{4037} \right)} = 1\)
  1. 0008842811:
    \(\cos(2 x)\)
    \(\cos{\left(2 pdg_{1464} \right)}\)
  1. 9889984281; locally 7472666:
    \(2 (\sin(x))^2 = 1 - \cos(2 x)\)
    \(2 \sin^{2}{\left(pdg_{1464} \right)} = 1 - \cos{\left(2 pdg_{1464} \right)}\)
valid 7572664728:
9889984281:
7572664728:
9889984281:
13 add X to both sides
  1. 1248277773; locally 7472641:
    \(\cos(2 x) = 1 - 2 (\sin(x))^2\)
    \(\cos{\left(2 pdg_{1464} \right)} = 1 - 2 \sin^{2}{\left(pdg_{1464} \right)}\)
  1. 0007471778:
    \(2(\sin(x))^2\)
    \(2 \sin^{2}{\left(pdg_{1464} \right)}\)
  1. 7572664728; locally 1029911:
    \(\cos(2 x) + 2 (\sin(x))^2 = 1\)
    \(2 \sin^{2}{\left(pdg_{4037} \right)} + \cos{\left(2 pdg_{4037} \right)} = 1\)
valid 1248277773:
7572664728:
1248277773:
7572664728:
1 declare initial expr
  1. 4938429483; locally 8888888:
    \(\exp(i x) = \cos(x)+i \sin(x)\)
    \(e^{pdg_{1464} pdg_{4621}} = pdg_{4621} \sin{\left(pdg_{1464} \right)} + \cos{\left(pdg_{1464} \right)}\)
no validation is available for declarations 4938429483:
4938429483:
6 select real parts
  1. 9483928192; locally 2222222:
    \(\cos(2 x) + i\sin(2 x) = (\cos(x))^2 + 2 i \cos(x) \sin(x) - (\sin(x))^2\)
    \(pdg_{4621} \sin{\left(2 pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)} = 2 pdg_{4621} \sin{\left(pdg_{1464} \right)} \cos{\left(pdg_{1464} \right)} - \sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)}\)
  1. 9482928242; locally 5828294:
    \(\cos(2 x) = (\cos(x))^2 - (\sin(x))^2\)
    \(\cos{\left(2 pdg_{1464} \right)} = - \sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)}\)
LHS diff is -cos(2*pdg1464) + cos(2*re(pdg1464))*cosh(2*im(pdg1464)) + re(pdg4621*sin(2*pdg1464)) RHS diff is -cos(2*pdg1464) + 2*cos(2*re(pdg1464))*sinh(im(pdg1464))**2 + cos(2*re(pdg1464)) + re(pdg4621*sin(2*pdg1464)) 9483928192:
9482928242:
9483928192:
9482928242:
7 add X to both sides
  1. 9482928242; locally 5828294:
    \(\cos(2 x) = (\cos(x))^2 - (\sin(x))^2\)
    \(\cos{\left(2 pdg_{1464} \right)} = - \sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)}\)
  1. 0007894942:
    \((\sin(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)}\)
  1. 9482928243; locally 4890284:
    \(\cos(2 x) + (\sin(x))^2 = (\cos(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)} = \cos^{2}{\left(pdg_{1464} \right)}\)
valid 9482928242:
9482928243:
9482928242:
9482928243:
4 multiply expr 1 by expr 2
  1. 4938429483; locally 8888888:
    \(\exp(i x) = \cos(x)+i \sin(x)\)
    \(e^{pdg_{1464} pdg_{4621}} = pdg_{4621} \sin{\left(pdg_{1464} \right)} + \cos{\left(pdg_{1464} \right)}\)
  2. 4938429483; locally 8888888:
    \(\exp(i x) = \cos(x)+i \sin(x)\)
    \(e^{pdg_{1464} pdg_{4621}} = pdg_{4621} \sin{\left(pdg_{1464} \right)} + \cos{\left(pdg_{1464} \right)}\)
  1. 4638429483; locally 3333333:
    \(\exp(2 i x) = (\cos(x)+ i \sin(x))(\cos(x)+ i \sin(x))\)
    \(e^{2 pdg_{1464} pdg_{4621}} = \left(pdg_{4621} \sin{\left(pdg_{1464} \right)} + \cos{\left(pdg_{1464} \right)}\right)^{2}\)
valid 4938429483:
4938429483:
4638429483:
4938429483:
4938429483:
4638429483:
11 LHS of expr 1 equals LHS of expr 2
  1. 9482438243; locally 2936550:
    \((\cos(x))^2 = \cos(2 x) + (\sin(x))^2\)
    \(\cos^{2}{\left(pdg_{1464} \right)} = \sin^{2}{\left(pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)}\)
  2. 3285732911; locally 9123670:
    \((\cos(x))^2 = 1-(\sin(x))^2\)
    \(\cos^{2}{\left(pdg_{1464} \right)} = 1 - \sin^{2}{\left(pdg_{1464} \right)}\)
  1. 4827492911; locally 9481000:
    \(\cos(2 x)+(\sin(x))^2 = 1 - (\sin(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)} = 1 - \sin^{2}{\left(pdg_{1464} \right)}\)
valid 9482438243:
3285732911: error for dim with 3285732911
4827492911:
9482438243:
3285732911: N/A
4827492911:
3 LHS of expr 1 equals LHS of expr 2
  1. 4598294821; locally 4444444:
    \(\exp(2 i x) = (\cos(x))^2+2i\cos(x)\sin(x)-(\sin(x))^2\)
    \(e^{2 pdg_{1464} pdg_{4621}} = 2 pdg_{4621} \sin{\left(pdg_{1464} \right)} \cos{\left(pdg_{1464} \right)} - \sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)}\)
  2. 4838429483; locally 9999999:
    \(\exp(2 i x) = \cos(2 x)+i \sin(2 x)\)
    \(e^{2 pdg_{1464} pdg_{4621}} = pdg_{4621} \sin{\left(2 pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)}\)
  1. 9483928192; locally 2222222:
    \(\cos(2 x) + i\sin(2 x) = (\cos(x))^2 + 2 i \cos(x) \sin(x) - (\sin(x))^2\)
    \(pdg_{4621} \sin{\left(2 pdg_{1464} \right)} + \cos{\left(2 pdg_{1464} \right)} = 2 pdg_{4621} \sin{\left(pdg_{1464} \right)} \cos{\left(pdg_{1464} \right)} - \sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)}\)
valid 4598294821:
4838429483:
9483928192:
4598294821:
4838429483:
9483928192:
9 subtract X from both sides
  1. 5832984291; locally 9385720:
    \((\sin(x))^2 + (\cos(x))^2 = 1\)
    \(\sin^{2}{\left(pdg_{1464} \right)} + \cos^{2}{\left(pdg_{1464} \right)} = 1\)
  1. 0001111111:
    \((\sin(x))^2\)
    \(\sin^{2}{\left(pdg_{1464} \right)}\)
  1. 3285732911; locally 9123670:
    \((\cos(x))^2 = 1-(\sin(x))^2\)
    \(\cos^{2}{\left(pdg_{1464} \right)} = 1 - \sin^{2}{\left(pdg_{1464} \right)}\)
valid 5832984291: error for dim with 5832984291
3285732911: error for dim with 3285732911
 5832984291: N/A
3285732911: N/A
Physics Derivation Graph: Steps for Euler equation: trig square root

Symbols for this derivation

See also all 227 symbols
symbol ID category latex scope dimension name value Used in derivations references
4621 variable i
\(i\)		 ['imaginary'] dimensionless imaginary unit 74
4037 variable x
\(x\)		 ['real']
  • length: 1
 position 53
1464 variable x
\(x\)		 ['real'] dimensionless 140
