Review optics: Law of refraction to Brewster's angle

abstract: \cite{2001_HRW}; see figure 34-27 on page 824
reference:

step	inference rule	input	feed	output	step validity (as per SymPy)
1	111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\\ref{eq:#1} is an initial equation.			8945218208 $\theta_{\rm Brewster} + \theta_{\rm refracted}=90^{\circ}$	no validation is available for declarations
2	111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\\ref{eq:#2}; yields Eq.~\\ref{eq:#3}.	8945218208 $\theta_{\rm Brewster} + \theta_{\rm refracted}=90^{\circ}$	9025853427 $\theta_{\rm Brewster}$	1310571337 $\theta_{\rm refracted}=90^{\circ} - \theta_{\rm Brewster}$	invalid syntax (<string>, line 0)
3	111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\\ref{eq:#1} is an initial equation.			6450985774 $n_1 \sin( \theta_1 )=n_2 \sin( \theta_2 )$	no validation is available for declarations
4	111984: change two variables in expression number of inputs: 1; feeds: 4; outputs: 1 Change variable $#1$ to $#2$ and $#3$ to $#4$ in Eq.~\\ref{eq:#5}; yields Eq.~\\ref{eq:#6}.	6450985774 $n_1 \sin( \theta_1 )=n_2 \sin( \theta_2 )$	7154592211 $\theta_2$ 2773628333 $\theta_1$ 9029795851 $\theta_{\rm Brewster}$ 6353701615 $\theta_{\rm refracted}$	2575937347 $n_1 \sin( \theta_{\rm Brewster} )=n_2 \sin( \theta_{\rm refracted} )$	list index out of range
5	111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\\ref{eq:#1} into Eq.~\\ref{eq:#2}; yields Eq.~\\ref{eq:#3}.	2575937347 $n_1 \sin( \theta_{\rm Brewster} )=n_2 \sin( \theta_{\rm refracted} )$ 1310571337 $\theta_{\rm refracted}=90^{\circ} - \theta_{\rm Brewster}$		7696214507 $n_1 \sin( \theta_{\rm Brewster} )=n_2 \sin( 90^{\circ} - \theta_{\rm Brewster} )$	invalid syntax (<string>, line 0)
6	111299: declare identity number of inputs: 0; feeds: 0; outputs: 1 Eq.~\\ref{eq:#1} is an identity.			8588429722 $\sin( 90^{\circ} - x )=\cos( x )$	no validation is available for declarations
7	111886: change variable X to Y number of inputs: 1; feeds: 2; outputs: 1 Change variable $#1$ to $#2$ in Eq.~\\ref{eq:#3}; yields Eq.~\\ref{eq:#4}.	8588429722 $\sin( 90^{\circ} - x )=\cos( x )$	7375348852 $\theta_{\rm Brewster}$ 1512581563 $x$	6831637424 $\sin( 90^{\circ} - \theta_{\rm Brewster} )=\cos( \theta_{\rm Brewster} )$	invalid syntax (<string>, line 0)
8	111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\\ref{eq:#1} into Eq.~\\ref{eq:#2}; yields Eq.~\\ref{eq:#3}.	7696214507 $n_1 \sin( \theta_{\rm Brewster} )=n_2 \sin( 90^{\circ} - \theta_{\rm Brewster} )$ 6831637424 $\sin( 90^{\circ} - \theta_{\rm Brewster} )=\cos( \theta_{\rm Brewster} )$		3061811650 $n_1 \sin( \theta_{\rm Brewster} )=n_2 \cos( \theta_{\rm Brewster} )$	invalid syntax (<string>, line 0)
9	111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\\ref{eq:#2} by $#1$; yields Eq.~\\ref{eq:#3}.	3061811650 $n_1 \sin( \theta_{\rm Brewster} )=n_2 \cos( \theta_{\rm Brewster} )$	7857757625 $n_1$	9756089533 $\sin( \theta_{\rm Brewster} )=\frac{n_2}{n_1} \cos( \theta_{\rm Brewster} )$	valid
10	111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\\ref{eq:#2} by $#1$; yields Eq.~\\ref{eq:#3}.	9756089533 $\sin( \theta_{\rm Brewster} )=\frac{n_2}{n_1} \cos( \theta_{\rm Brewster} )$	5632428182 $\cos( \theta_{\rm Brewster} )$	2768857871 $\frac{\sin( \theta_{\rm Brewster} )}{\cos( \theta_{\rm Brewster} )}=\frac{n_2}{n_1}$	valid
11	111299: declare identity number of inputs: 0; feeds: 0; outputs: 1 Eq.~\\ref{eq:#1} is an identity.			4968680693 $\tan( x )=\frac{ \sin( x )}{\cos( x )}$	no validation is available for declarations
12	111886: change variable X to Y number of inputs: 1; feeds: 2; outputs: 1 Change variable $#1$ to $#2$ in Eq.~\\ref{eq:#3}; yields Eq.~\\ref{eq:#4}.	4968680693 $\tan( x )=\frac{ \sin( x )}{\cos( x )}$	9906920183 $x$ 7321695558 $\theta_{\rm Brewster}$	4501377629 $\tan( \theta_{\rm Brewster} )=\frac{ \sin( \theta_{\rm Brewster} )}{\cos( \theta_{\rm Brewster} )}$	valid
13	111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\\ref{eq:#1} into Eq.~\\ref{eq:#2}; yields Eq.~\\ref{eq:#3}.	4501377629 $\tan( \theta_{\rm Brewster} )=\frac{ \sin( \theta_{\rm Brewster} )}{\cos( \theta_{\rm Brewster} )}$ 2768857871 $\frac{\sin( \theta_{\rm Brewster} )}{\cos( \theta_{\rm Brewster} )}=\frac{n_2}{n_1}$		3417126140 $\tan( \theta_{\rm Brewster} )=\frac{ n_2 }{ n_1 }$	valid
14	111490: apply function to both sides of expression number of inputs: 1; feeds: 2; outputs: 1 Apply function $#1$ with argument $#2$ to Eq.~\\ref{eq:#3}; yields Eq.~\\ref{eq:#4}	3417126140 $\tan( \theta_{\rm Brewster} )=\frac{ n_2 }{ n_1 }$	6023986360 $x$ 5453995431 $\arctan{ x }$	8495187962 $\theta_{\rm Brewster}=\arctan{ \left( \frac{ n_1 }{ n_2 } \right) }$	recognized infrule but not yet supported
15	111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\\ref{eq:#1} is one of the final equations.	8495187962 $\theta_{\rm Brewster}=\arctan{ \left( \frac{ n_1 }{ n_2 } \right) }$			no validation is available for declarations

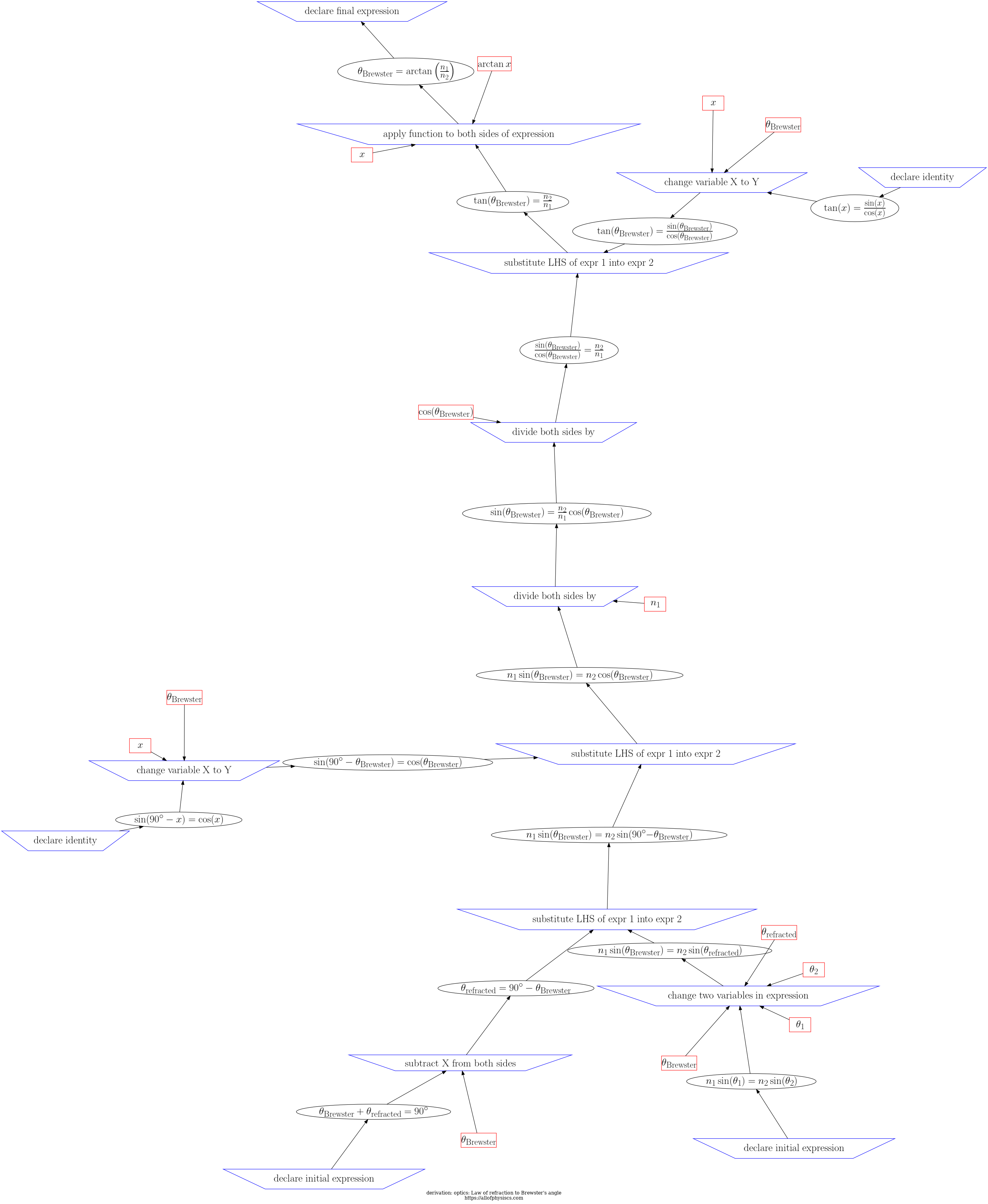

Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.
