Review projectile path in 2D is parabolic

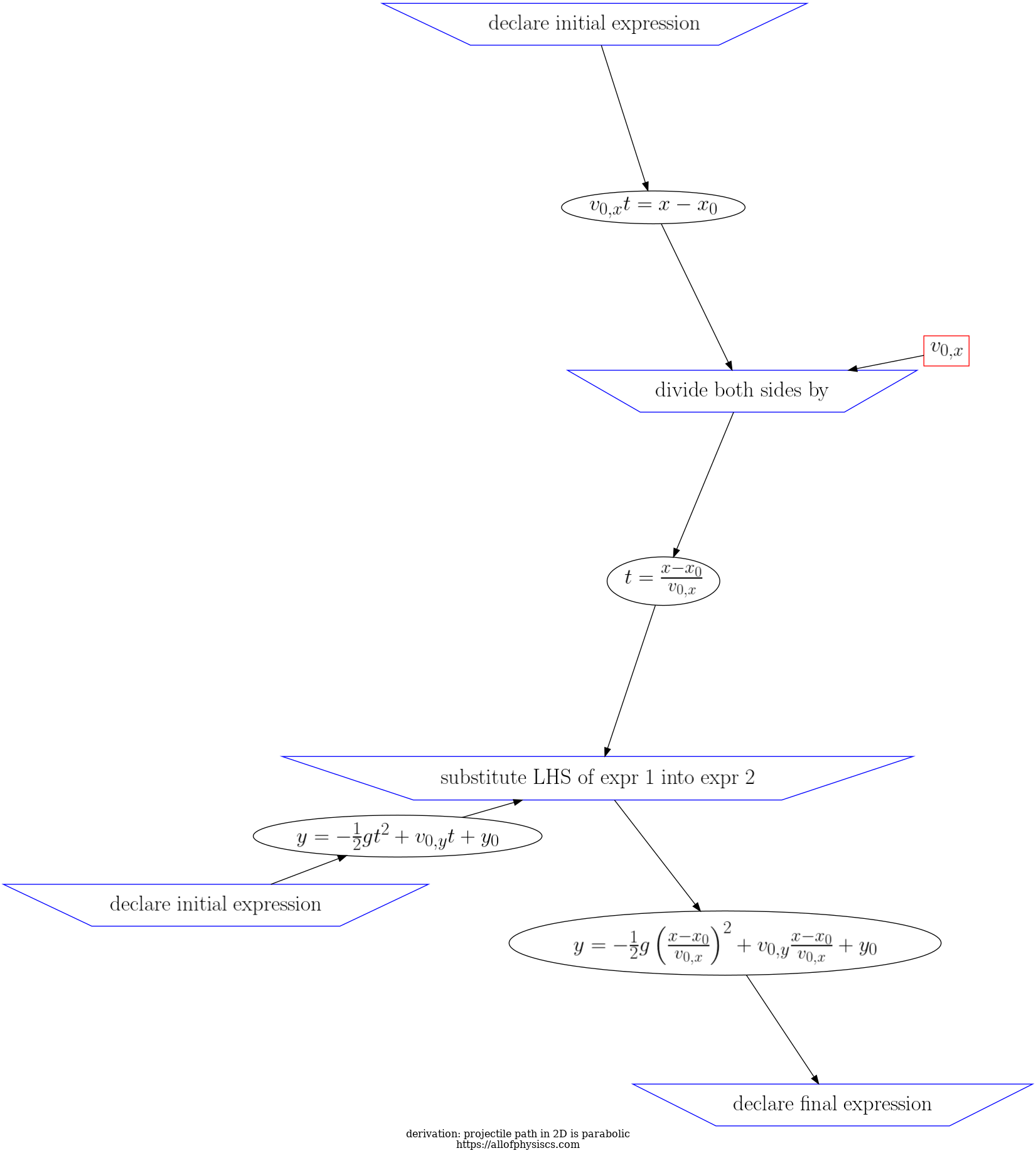

abstract: Using the 2D equations of motion, show that projectile path is second order polynomial of the form y = a x^2 + b x + c
reference:

step	inference rule	input	feed	output	step validity (as per SymPy)
1	111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\\ref{eq:#1} is an initial equation.			9882526611 $v_{0, x} t=x - x_0$	no validation is available for declarations
2	111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\\ref{eq:#2} by $#1$; yields Eq.~\\ref{eq:#3}.	9882526611 $v_{0, x} t=x - x_0$	6050070428 $v_{0, x}$	3274926090 $t=\frac{x - x_0}{v_{0, x}}$	valid
3	111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\\ref{eq:#1} is an initial equation.			1405465835 $y=- \frac{1}{2} g t^2 + v_{0, y} t + y_0$	no validation is available for declarations
4	111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\\ref{eq:#1} into Eq.~\\ref{eq:#2}; yields Eq.~\\ref{eq:#3}.	3274926090 $t=\frac{x - x_0}{v_{0, x}}$ 1405465835 $y=- \frac{1}{2} g t^2 + v_{0, y} t + y_0$		7354529102 $y=- \frac{1}{2} g \left( \frac{x - x_0}{v_{0, x}} \right)^2 + v_{0, y} \frac{x - x_0}{v_{0, x}} + y_0$	LHS diff is 0 RHS diff is (pdg0001572 - pdg0004037)(pdg0001649(pdg0001572 - pdg0004037)(pdg0001649 - 1) + 2pdg0002958(-pdg0009107 + pdg0009431))/(2pdg0002958**2)
5	111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\\ref{eq:#1} is one of the final equations.	7354529102 $y=- \frac{1}{2} g \left( \frac{x - x_0}{v_{0, x}} \right)^2 + v_{0, y} \frac{x - x_0}{v_{0, x}} + y_0$			no validation is available for declarations
